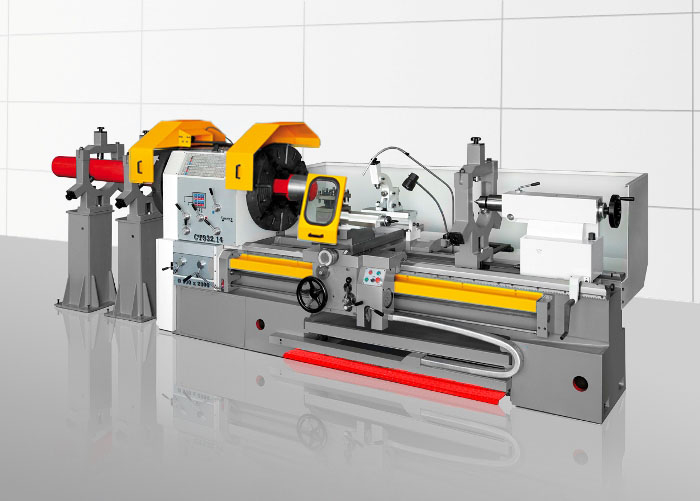

TECNICAL DATA |
|
Height of centers |
mm |
467 |
|
Distance between centers |
mm |
1000-1500-2000-3000-4000-5000-6000 |
|
Swing |
mm |
|
|
over bed |
|
930 |
|
over carriage |
|
610 |
|
in the gap |
|
1100 |
|
Width of bed |
mm |
560 |
|
SPINDEL |
|
Spindle bore |
mm |
ô360 |
|
Number of speed |
¹ |
12 |
|
Spindle speed range |
rpm |
8-400 |
|
FEEDS-THREADS |
|
Number of feeds |
¹ |
160 |
|
Range of |
|
|
|
longditudinal feeds |
mm/rev |
0,039-15 |
|
transversal feeds |
mm/rev |
0,0195-7,5 |
|
Number of threads |
¹ |
320(4 X 80) |
|
metric |
mm |
0,5-150 |
|
inch |
tr/1" |
60-13/64 |
|
module |
m |
0,125-37,5 |
|
DP |
DP |
240-4/5 |
|
Cross slide travel |
|
510 |
|
Compound slide travel |
|
250 |
|
TAIL STOCK |
|
Quill diameter |
mm |
125 |
|
Quill travel |
mm |
265 |
|
Quill taper |
Morse |
6 |
|
MOTORS |
|
Main drive |
kW |
15; 18,5 |
|
Rapid traverse |
kW |
0,55 |
|
Lubrication pump |
kW |
0,12 |
|
Coolant pump |
kW |
0,09 |
|
ADDITIONAL CONSTRUCTIONAL MODIFICATIONS |
|
*We are offering a possibility for English version on the machine. |
|
*Machines can be "CE" or normal execution. |
*By request of the customer we can put additional a digital indicator system and
a pedal brake. |
|
OVER ALL DIMENSIONS |
|
Width |
mm |
1840 |
|
Height |
mm |
1890 |
|
Length |
mm |
|
|
DP 1000 |
|
3500 |
|
DP 1500 |
|
4000 |
|
DP 2000 |
|
4500 |
|
DP 3000 |
|
5500 |
|
DP 4000 |
|
6500 |
|
DP 5000 |
|
7500 |
|
DP 6000 |
|
8500 |
|
WEIGHT |
|
DP 1000 |
kg |
4840 |
|
DP 1500 |
kg |
5120 |
|
DP 2000 |
kg |
5440 |
|
DP 3000 |
kg |
6160 |
|
DP 4000 |
kg |
7460 |
|
DP 5000 |
kg |
8740 |
|
DP 6000 |
kg |
9490 |
|
