Maximum cut off stock |
b (b x h) |
 |
Cutting at angle 90° |
mm |
 |
750 |
 |
750 |
 |
750x1300 |
|
|
Cutting at angle 45° |
mm |
|
750 |
|
|
750 |
|
|
850x750 |
|
|
Cutting at angle 30° |
mm |
|
x |
|
|
x |
|
|
x |
|
Material level |
mm |
650 |
|
Sawing speed |
m/min |
15-120 |
|
Saw blade dimension |
mm |
9600x54x1,3 |
|
Stock feeding: |
|
|
|
single |
mm |
x |
|
repeatedly |
mm |
x |
|
Power of: |
|
|
|
main motor |
kW |
11 |
|
cooling system motor |
kW |
0.12 |
|
hydraulic system motor |
kW |
1.5 |
|
brush motor |
kW |
0.18 |
|
Capacity îf: |
|
|
|
hydraulic system |
l |
90 |
|
cooling system |
l |
150 |
|
Overall dimension |
|
|
|
length |
mm |
4750 |
|
width |
mm |
2405 |
|
height |
mm |
2550 |
|
Net weight |
kg |
5000 |

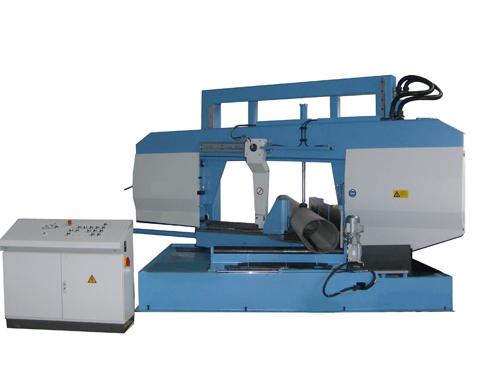

Description:
Semiautomatic machine for straight and miter cutting;
-
Material feeding – manually;
-
Material clamping – hydraulically, long stroke cylinders, clamping force variable control;
-
Automatic sawbow lifting over the material – hydraulically;
-
Saw blade tensioning – manually;
-
Saw blade feeding – hydraulically, cutting force variable control;
-
Main motor revolutions – frequency controlled;
-
Automatic bandsaw guide adjusting as to the material size;
|
