Cutting range |
b (b x h) |
 |
Cutting at angle 90° |
mm |
 |
630 |
 |
630 |
 |
630 |
|
Cutting in bundle, max |
mm |
400x380 |
|
Material level |
mm |
710 |
|
Minimum rest in automatic mode |
mm |
60 |
|
Sawing speed |
m/min |
15-100 |
|
Saw blade dimension |
mm |
6850x54x1.6 |
|
Stock feeding: |
|
|
|
single |
mm |
750 |
|
repeatedly |
mm |
9999 |
|
Power of: |
|
|
|
main motor |
kW |
7.5 |
|
cooling system motor |
kW |
0.12 |
|
hydraulic system motor |
kW |
1.5 |
|
brush motor |
kW |
0.09 |
|
Capacity of: |
|
|
|
hydraulic system |
l |
60 |
|
cooling system |
l |
60 |
|
Overall dimension |
|
|
|
length |
mm |
3390 |
|
width |
mm |
2370 |
|
height |
mm |
2350 |
|
Net weight |
kg |
5400 |

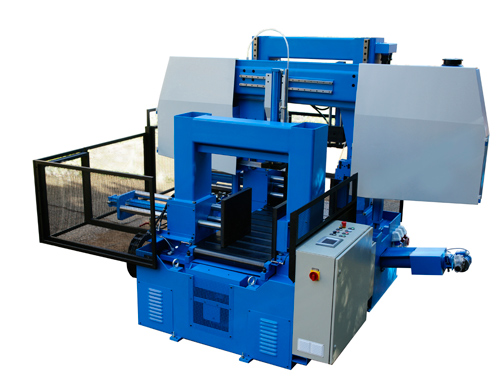

Description:
Fully automatic machine for straight cutting;
-
Material feeding – by a ballscrew couple, carriage stroke – 750 mm;
-
Material clamping – hydraulically, long stroke cylinders, clamping force variable control;
-
Automatic sawbow lifting over the material – hydraulically;
-
Saw blade tensioning – hydraulically;
-
Saw blade feeding – hydraulically, cutting force variable control;
-
Main motor revolutions – frequency controlled;
-
Automatic material finding and feeding device positioning by a laser gauge;
-
Automatic bandsaw guide adjusting as to the material size;
-
Screw type chip removal conveyer;
-
Controller with a control panel with opportunity for 99 programs choice;
|
