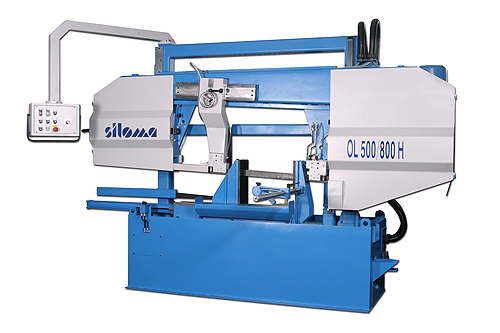

Przecinarka taśmowa OL 500/800 HP

b (b x h)
	Cutting range	mm		500
				500
				820x500
Bundle cutting		mm		500 x500
Material level		mm	700
Sawing speed		m/min	15-100
Saw blade dimensions		mm	7050x54x1.6
Power of:
main motor		kW	5.5
cooling system motor		kW	0.12
hydraulic system motor		kW	0.75
cleaning brush motor		kW	0.09
Capacity of:
hydraulic system tank		l	30
cooling system tank		l	40
Overall dimensions:
length		mm	4030
width		mm	2050
height		mm	2400
Net weight		kg	2600

Description

Semi automatic bandsaw for straight cutting;

Material clamping – hydraulically, clamping in front and behind the blade, adjustable cutting pressure;
Automatic frame lifting over the material – hydraulically;
Cutting blade tensioning – manually;
Cutting blade feeding – hydraulically. Adjustable cutting pressure;
Frequency controlled cutting speed;

Special accessories

Frame hydraulic pressure
Laser indicator of cut position;
Screw conveyer;
Micro spraying system;
