Cutting range |
b (b x h) |
 |
Cutting at angle 90° |
mm |
 |
340 |
 |
340 |
 |
630x340 |
 |
Cutting at angle 45° |
mm |
|
340 |
|
|
340 |
|
|
430x340 |
 |
Cutting at angle 30° |
mm |
|
280 |
|
|
280 |
|
|
280x340 |
|
Material level |
mm |
800 |
|
Shortest length of residual piece in automatic mode |
mm |
100 |
|
Sawing speed |
m/min |
15-100 |
|
Saw blade dimension |
,, |
5150x34x1,1 |
|
Stock feeding: |
|
|
|
single |
mm |
750 |
|
repeatedly |
mm |
9999 |
|
Power of: |
|
|
|
main motor |
kW |
4 |
|
cooling system motor |
kW |
0.15 |
|
hydraulic system motor |
kW |
0.75 |
|
brush motor |
kW |
0.09 |
|
Capacity îf: |
|
|
|
hydraulic system |
l |
40 |
|
cooling system |
l |
50 |
|
Overall dimension |
|
|
|
length |
mm |
2400 |
|
width |
mm |
3200 |
|
height |
mm |
1900 |
|
Net weight |
kg |
3000 |

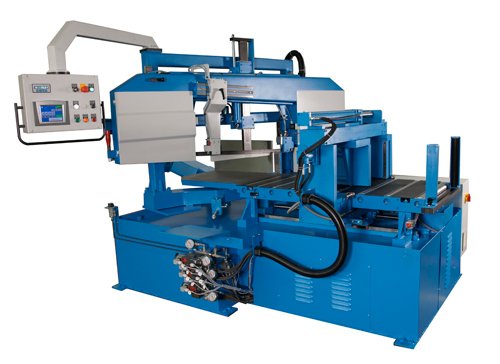

Description:
Fully automatic machine for straight and miter cutting;
-
Material feeding – by a ballscrew couple, carriage stroke – 750 mm;
-
Material clamping – hydraulically, long stroke cylinders, clamping force variable control;
-
Automatic sawbow lifting over the material – hydraulically;
-
Saw blade tensioning – hydraulically;
-
Saw blade feeding – hydraulically, cutting force variable control;
-
Main motor revolutions – frequency controlled;
-
Automatic material finding and feeding device positioning by a laser gauge;
-
Automatic bandsaw guide adjusting as to the material size;
-
Screw type chip removal conveyer;
-
Controller with a control panel with opportunity for 50 programs choice;
-
Digital display for cutting angle reading;
|
