Cutting range |
b (b x h) |
 |
Cutting at angle 90° |
mm |
 |
330 |
 |
330x330 |
 |
590x250 |
|
|
Cutting at angle 45° |
mm |
|
300 |
|
|
280x280 |
|
|
250x330 |
|
Bundle cutting |
mm |
 |
220x80 |
|
Material level |
mm |
740 |
|
Sawing speed |
m/min |
17 : 110 |
|
Saw blade dimensions |
mm |
4120x27x0.9 |
|
Power of: |
|
|
|
main motor |
kW |
1.5 |
|
cooling motor |
kW |
0.06 |
|
hydraulic motor |
kW |
x |
|
brush motor |
kW |
x |
|
Capacity of: |
|
|
|
hydraulic system tank |
l |
1.5 |
|
cooling system tank |
l |
30 |
|
Overall dimensions: |
|
|
|
length |
mm |
2100 |
|
width |
mm |
750 |
|
height |
mm |
1220 |
|
Net weight |
kg |
460 |
Description

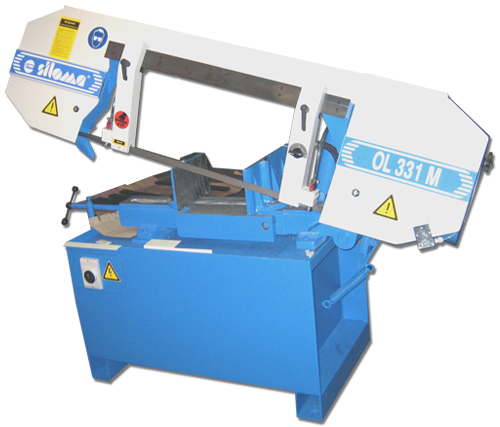

Manual bandsaw for straight cutting - mitre cuts possible only by means of tiltable clamping jaws to both sides up to 45o.
-
Material feeding – manually;
-
Material clamping – manually;
-
Automatic frame lifting over the material – manually;
-
Cutting blade tensioning – manually;
-
Cutting blade feeding – hydraulically;
Special accessories
-
Stand for material;
-
Bundle cutting device - mechanical;
-
Micro spraying system;
|
