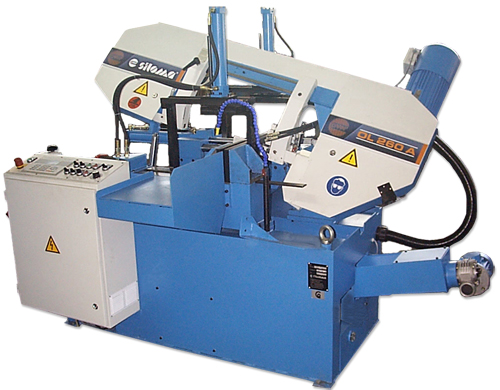

Przecinarka taśmowa OL260A / OL 260 A NC



Cutting range b (b x h)
Cutting at angle 90° mm 260
260x260
320x200
Bundle cutting mm 280x140
Material level mm 850
Minimum rest in automatic mode mm 65 / 50
Sawing speed m/min 15 : 100
Diameter of the wheels mm 388
Saw blade dimension mm 3660x27x0.9
Stock feeding:
single mm 400 / 470
repeatedly mm 3600/6500
Power of:
main motor kW 3.0
cooling motor kW 0.06
hydraulic motor kW 0.75
brush motor kW 0.09
Capacity of:
hydraulic system l 12
cooling system l 30
Overall dimension
length mm 1920
width mm 1630
height mm 1750
Net weight kg 1100
