Catalogue types XY HKU.../3,4 HKU.../7 HKUS.../3,4,8 HKUS/PB HKUQ HKU(S).../5(T)(D)(U)
|
M+S TYPE HKU.../3,4,7 |
 |
|
 |
|
|
|
M+S Hydraulic hydrostatic steering units are designed for use on steering of low speed vehicles when the speed does not exceed 60 km/h such as forklifts, tractors, construction equipment, aircraft ground support vehicles, mining and industrial positioning requirements. Hydrostatic steering allows vehicle to be steered without mechanical connections. |
|
|
|
|
M+S TYPE HKUS.../3, 4, 8 |
|
|
|
 |
|
|
|
The HKUS Hydrostatic Steering units is based on the HKU unit but has buil-in relief and check valves. Thus M+S Hyraulic achieves one very compact steering unit which reduces the need for additional hydraulic components in the system. |
|
|
|
|

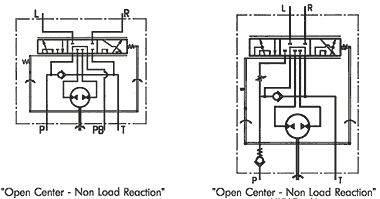

M+S TYPE HKU.../4 PB AND HKUQ.../4 |
|
|
|
 |
|
|
HKU.../4PB works as standart steering unit with auxiliary port destinet for flow providing additional vehicles funktions.
HKUQ.../4 is a new series of hydrostatic steering units with an additionally increased flow. HKUQ.../4 is an "Open Center-Non Load Reaction" hydrostatic steering in which restrictor for applying factor from 1,3 to 2,5 is built-in. |
|
|
|
|
M+S TYPE HKU(S).../5... |
|
|
|
 |
|
|

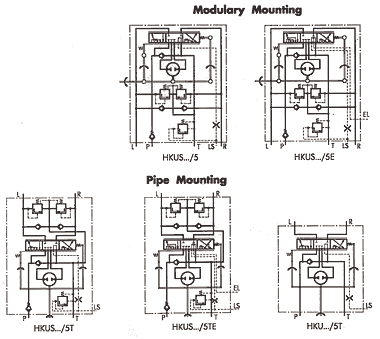

The HKU(S).../5(T)(E)(TE) range expands the steering units family of M+S Hydraulic with the "Closed Center - Non Reaction and Load Sensing Outlet" version (static hydraulic connection to the priority valve). This range is manifactured in two version; for modulary abd pipe mounting and therefor were developed the two versions of priority (tracing) valves: PRD... and PRT...
|
|
|
|
|
